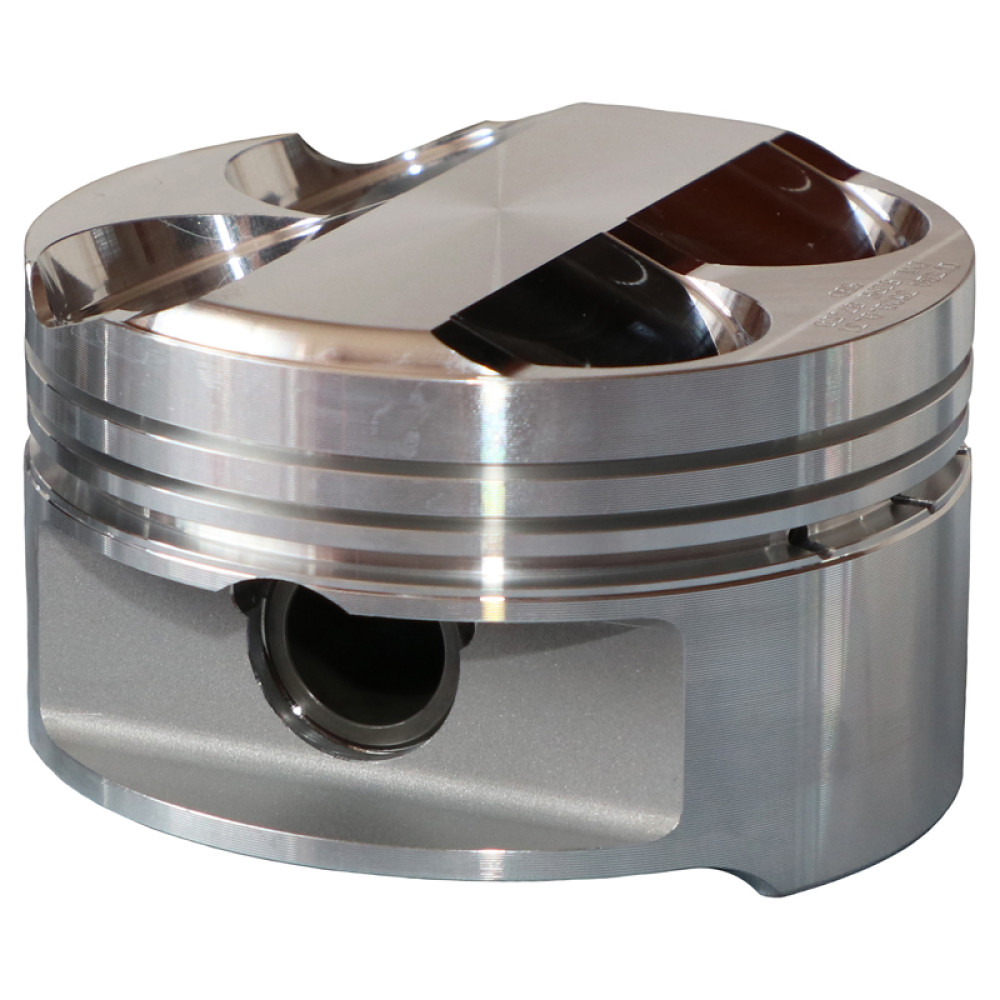

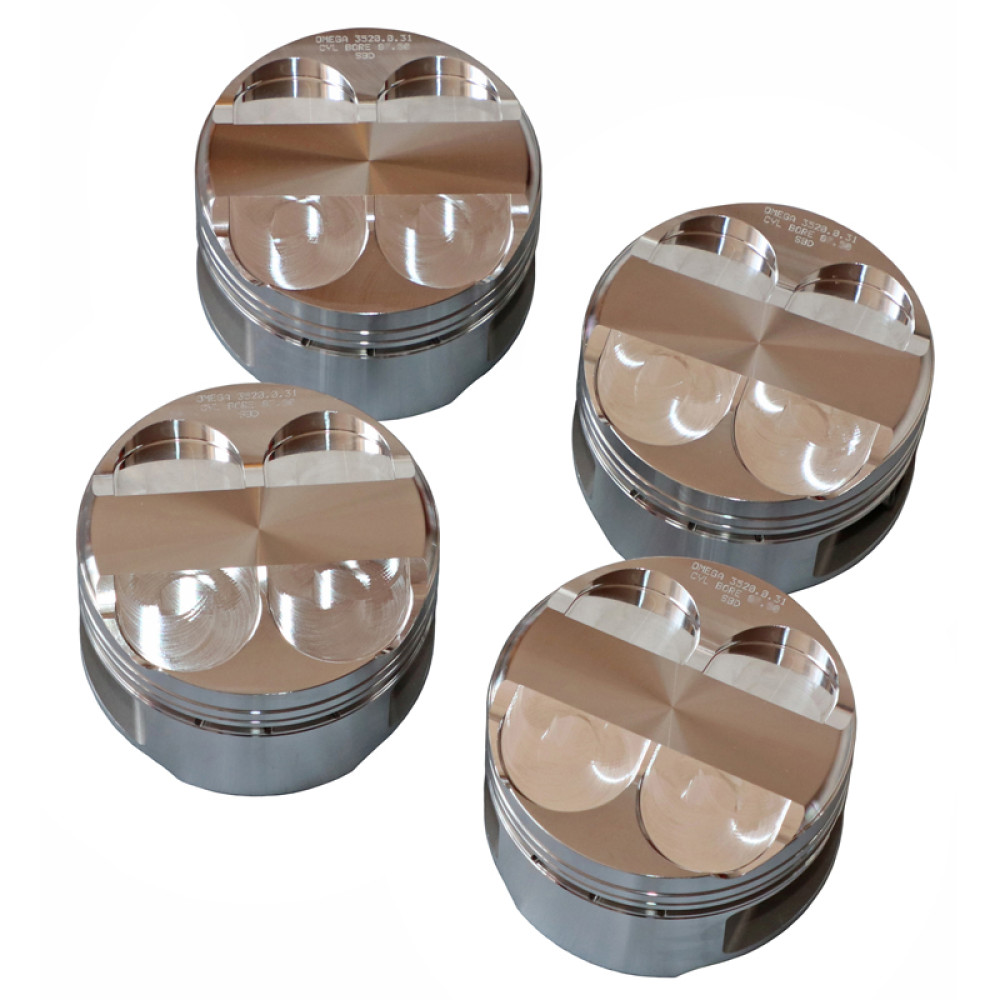

2.0L XE Omega/SBD Pot Piston Set, 86.50mm
PIST-OM86.05XS

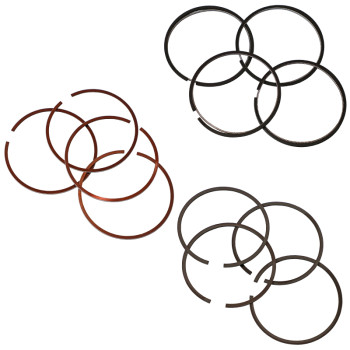

2.0L XE Omega/SBD 86.05mm pot piston set includes rings, pins and circlips.

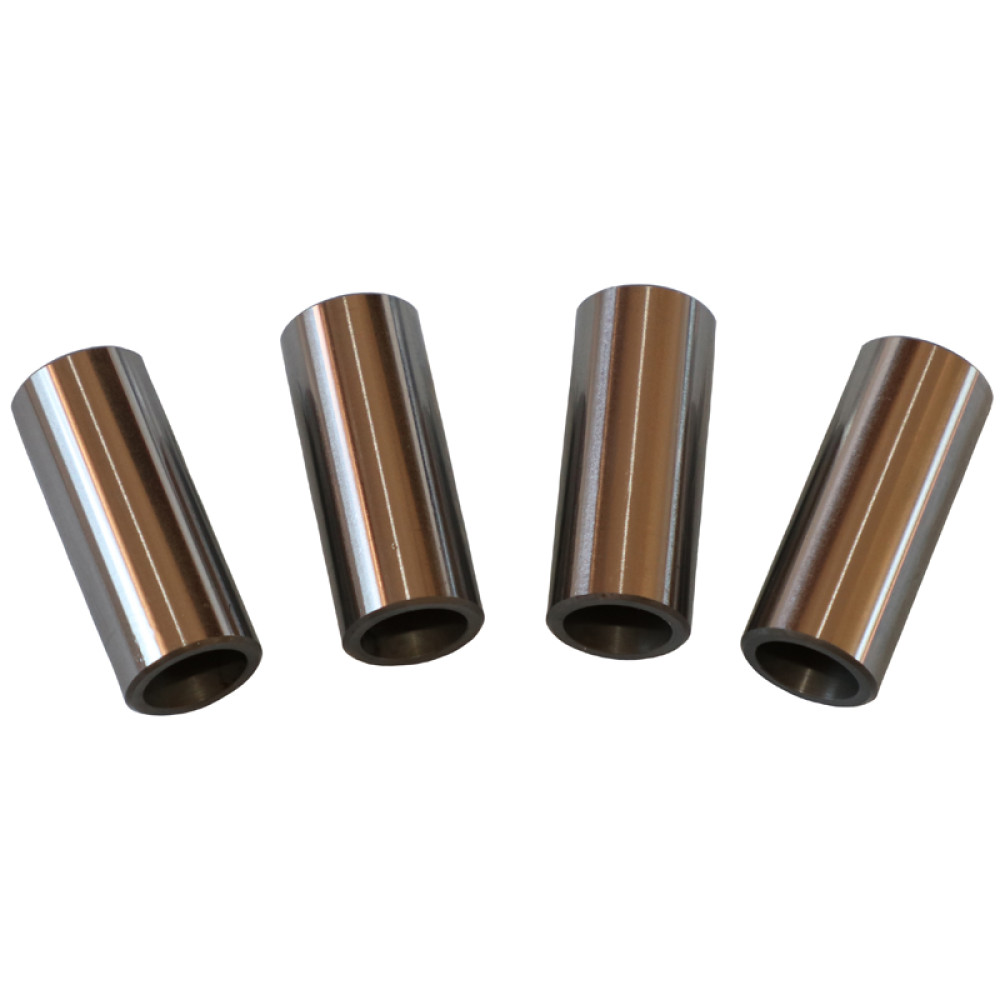

Gudgeon pin size: 21mm
Compression Height: 30.5mm

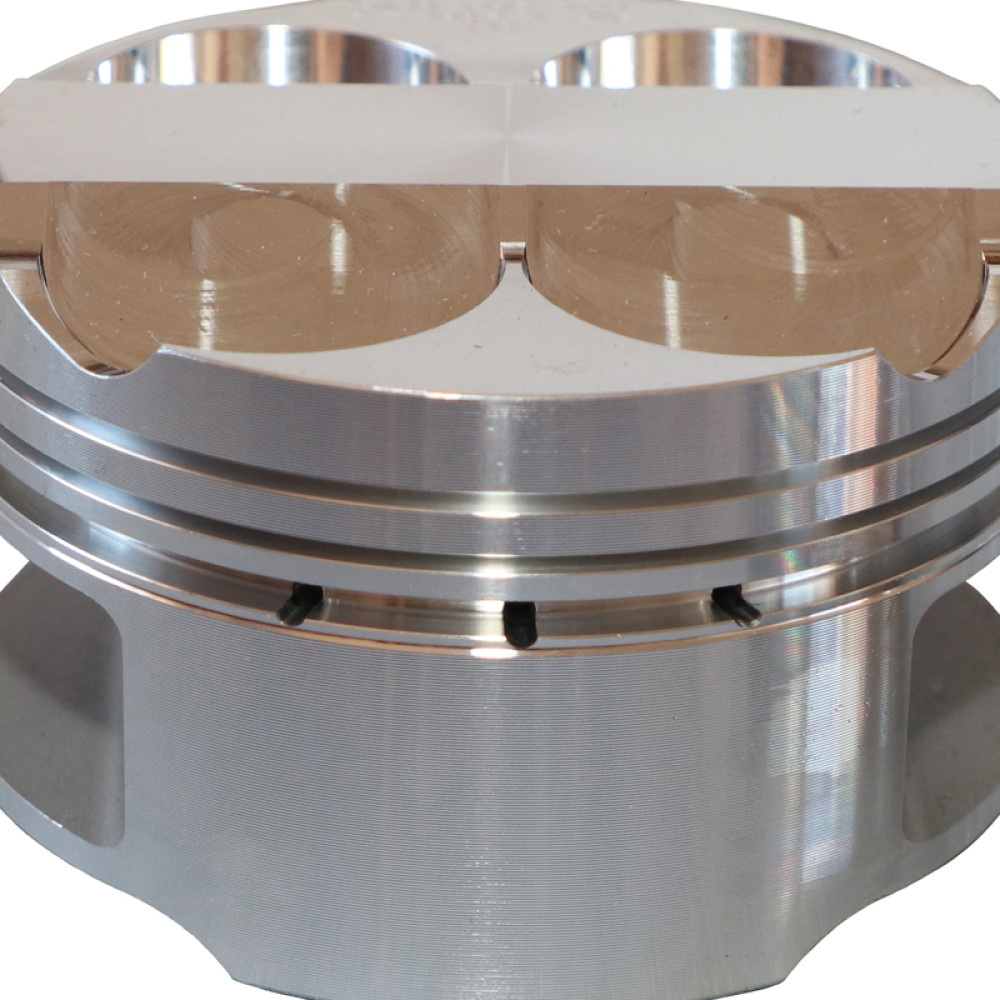

The Omega pot type pistons are extremely high quality and SBD have used them since we first started. The piston crown has been developed over time to what we believe is the best pot type piston available, if fact in many up against other makes of piston, they regularly out perform even those types which are supposed to be a slipper type. If you have a reasonable budget which is not able to stretch to our high specification Omega slipper pistons, choosing our Omega Pot type piston is an essential way to gain performance and reliability at the right price. Suitable for use with either standard rods or our ROD-VX-2.0L-143S.
2.0L XE 86.50mm SBD/Omega Pot Piston Estimated Compression Ratio Chart
Note – All volumes must be checked on every engine build, we cannot be held responsible for errors – Information is for guidance only
You can change the compression ratio of your engine by skimming the cylinder head if you wish to increase the compression. On the pot type pistons, you can lower the compression by machining the intruder part of the piston down (pot type pistons can have their intruder machined down to the deck of the piston if required).
IMPORTANT NOTE: Whenever any engine is assembled, the volumes should be carefully measured to ensure the desired compression ratio is obtained or there could be a lack of performance if the compression is too low or damage could occur if the compression is too high or mechanical contact takes place. If you do not have the equipment to carry out this work, it is recommended that you have this done by a professional.
