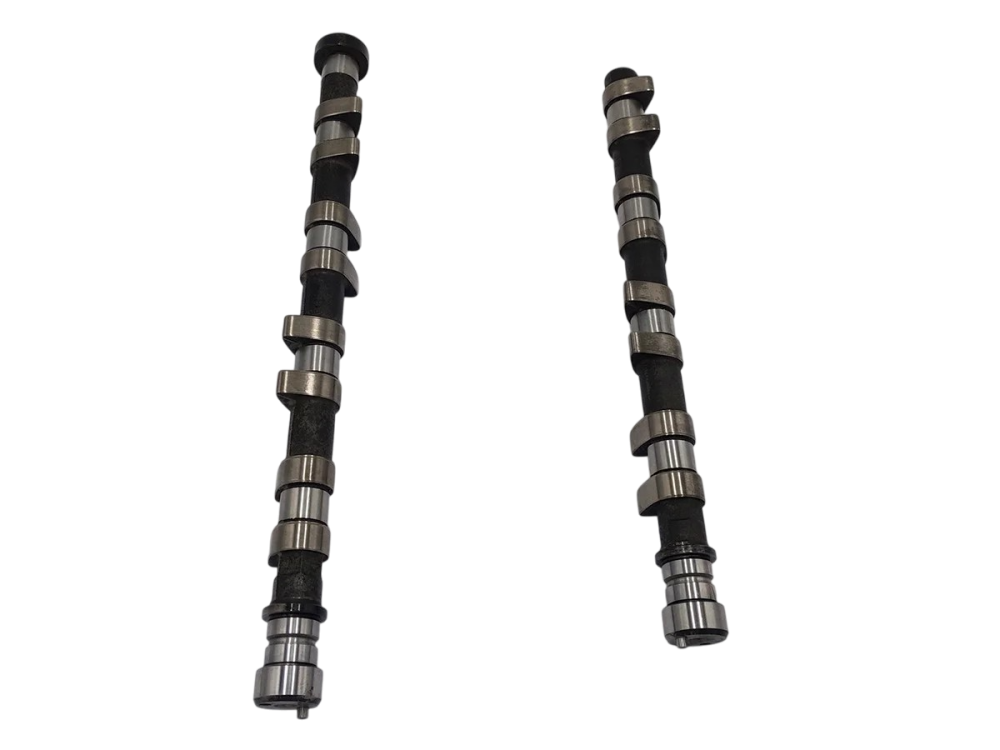

Motorsport Camshaft for Opel C20XE – 308° | 12.40 mm Lift | Mechanical Valve Train

Motorsport Camshaft for Opel C20XE – 308° | 12.40 mm Lift | Mechanical Valve Train

For sale is an extremely aggressive high-performance camshaft for the Opel C20XE 2.0 16V engine. With 308° duration and a maximum lift of 12.40 mm, this camshaft is purpose-built for high-revving naturally aspirated engines used in motorsport environments.

Technical Specifications:

• Duration: 308° (crankshaft)

• Max Valve Lift: 12.40 mm (measured without valve lash)

• Lift at TDC (Top Dead Center): 5.60 mm (without lash)

• Lobe Separation Angle (LSA): 102° crankshaft

• Base Circle Diameter: 31.0 mm

Key Features:

• Extremely sharp cam profile – ideal for high-revving NA race engines

• Engineered for peak power at high RPMs with aggressive valve timing

• Requires extensive engine modifications (e.g. solid lifters, stronger valve springs, ported head)

• Not suitable for street use – pure motorsport application

• Perfect for track racing, hill climb, or naturally aspirated competition builds

Note:
Not plug & play! Mechanical (solid) valve train conversion is mandatory, along with a properly matched engine setup.
